Research by the Construction Industry Institute states that design-related errors add roughly 12% of contract value to the total construction cost. In an industry where design-related failure means lost margin, precision in designs is a financial safeguard built into every line.

CAD Services can turn a rough concept into a construction-ready drawing that eliminates risks of inaccuracy before a single shovel hits the ground. But accuracy is not important just for the design phase. It is a thread that runs through the entire lifecycle of a project. This guide will break down exactly how CAD drafting maintains accuracy at each stage of the construction phase.

The Accuracy Problem With Traditional Drafting

Before CAD became the industry standard, every drawing depended on a steady hand and a sharp pencil. This manual process carries built-in limitations, including:

• In manual drafting, everything relied on human judgment, which creates room for misread rulers, rounded dimensions, and mislabeling even after redrawing the same details multiple times.
• Small mistakes can turn into disasters in manual drafting. For instance, a wall drawn a few millimeters off on paper can throw off the framing, electrical work, and fixture placement until crews don’t notice small errors on-site.
• Every change or modification that is meant to be done by hand can create a fresh chance to introduce a new error while the last one is still unresolved.
• Most drafters are out of the habit of following standards like ANSI Y14.5 or ISO 128 and often miss them while doing drafting by hand.

How CAD Drafting Ensures Accuracy at the Design Stage

The designing stage is the place where CAD starts closing gaps that traditional drafting could not. During this process, drafters use advanced tools instead of relying on steady hands to catch mistakes. Here are the ways CAD drafting ensures accuracy in the designing phase.

• This tool has a snapping lock feature that matches the exact lines instead of going close enough. It also generates smart dimensioning updates automatically when a design changes so that measurements stay correct without manual rechecking. Additionally, auto-calculation handles angles and totals in real time, removing guesswork and causing so many errors.
• Instead of continuously depending on one’s drafting habits, CAD enforces a standardized template across the entire drawing set to follow the exact format every time.
• Clash detection at the designing stage is critical to ensure smooth project execution. In digital drafting, structural and MEP elements can be checked against each other at the early stage. So, the beam and a duct trying to occupy the same space get flagged on screen during the design phase.

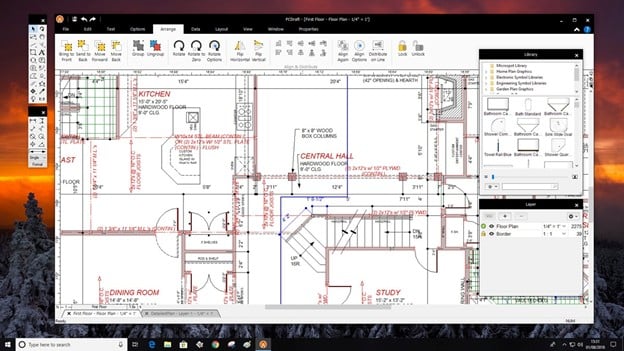

• The 2D and 3D visualization in the CAD drafting exposes design flaws long before they turn into an expensive on-site surprise.

Accuracy at the Coordination & Development Stage With CAD Drafting

Once a design moves forward from initial drafting, accuracy no longer depends on more than one person’s drawing. At the coordination and development stage, accuracy depends on how well everyone stays aligned as the project develops.

Have a look at how CAD drafting helps to maintain accuracy at this stage.

• Architects, engineers, and contractors can reference the same drawing set instead of passing separate and disconnected versions. This alone greatly reduces errors because nobody is working from an outdated plan without realizing it.
• In CAD drafting, when a design changes, updates apply directly to the drawing instead of requiring a full manual redo. Moreover, related views and details adjust automatically, so nothing gets missed in the shuffle.
• In this tool, every change is tracked so the entire team can see exactly what was updated. It also reduces the risk of someone building from superseded drawings.
• CAD focuses on creating 2D and 3D drawings. BIM goes a step further by adding data-rich models that support coordination across a project’s lifecycle. Many teams use CAD drafting as the foundation and layer BIM coordination on top for complex projects.

Accurate drawings also lead to accurate estimates. When CAD drawings are precise, the quantity takeoffs and cost estimates pulled from them are precise too. Teams can also work with Construction Estimating Companies to get reliable cost values, reducing the risk of budget surprises later.

Accuracy During the Execution Phase

Accuracy on paper only matters if it holds up on the job site too. CAD drafting proves its value at this stage too. Here is how this platform increases accuracy in the execution phase.

• Crew Gets Clear Instructions: CAD drafting provides exact dimensions, angles, and details, so the crew does not get confused while interpreting an inconsistent drawing. This reduces small misunderstandings that turn into costly mistakes.
• Fewer RFIs and Conflicts: When the drawings are precise and coordinated from the start, there is less hassle between the field and the staff asking for clarification. It also leads to fewer clashes between trades discovered in the middle of installation.

• Easy Code Compliance: Standardized and accurate drawings make it simpler to confirm a design meets local building codes, which further avoids delays during permitting and inspection.
• Offer Fast and Accurate Revisions: Site conditions don’t always match the plan exactly. CAD allows drawings to be updated quickly and precisely without error-prone manual redo when changes are needed.

Accuracy With CAD Drafting at Completion & Handover

Accuracy doesn’t end on the completion of the construction. It carries into how a building is documented, maintained, and used for years afterward. Have a look at how CAD drafting maintains accuracy at this stage.

• Field changes made during construction get reflected in the final drawing set prepared by CAD drafting. This is the most important step because it ensures documentation matches reality instead of just the original plan.
• Once handover happens, building owners and facility teams rely on these drawings for maintenance and future upgrades. These drawings bring less guesswork when something needs to be fixed or replaced years down the line.
• An accurate record in the CAD tool makes it easier to resolve disagreements about what was agreed upon versus what was delivered, protecting both contractors and clients.
• If the building is renovated or expanded later, precise as-builts save time and money by giving the next project team a reliable starting point instead of guessing.

Where CAD Accuracy Still Depends on People

Undoubtedly, CAD tools remove a lot of room for error, but still they don’t remove the need for human judgment. You must take these into account while aiming for accuracy.

• They Cannot Fix Bad Input: If measurements, site data, or specifications are wrong to begin with, CAD will draw them precisely wrong. Accuracy still starts with accurate information going in.
• Tools Cannot Review the Prepared Drawings: A drawing prepared with a CAD tool still needs to be checked by someone who understands the project, the site, and how all pieces fit together. Skipping that step removes one of the biggest mistakes.
• Experience Still Matters: Despite the advanced technology behind CAD tools, human experience still matters because a skilled drafter knows what to double-check, what looks off, and where mistakes tend to hide. Rushed drafting done with CAD still carries real risk.

CAD vs. Traditional Drafting: Quick Comparison

Conclusion

Accuracy in construction was never about getting one drawing right. It is about that precision holding up through every stage, from design to execution to handover. Traditional drafting left too much room for small errors that eventually turned into expensive problems. CAD drafting closes that gap by catching mistakes before they become costly ones. Pairing this with reliable Construction Estimating Services adds another layer of protection, helping ensure budgets stay as accurate as the drawings themselves.

If your project’s success depends on getting every measurement right from the first sketch to the final drawings, working with CAD too is one of the simplest ways to protect that accuracy and your budget at every step.

Frequently Asked Questions

How does CAD drafting improve accuracy compared to manual drafting?

CAD uses precision features such as snapping and smart dimensioning to remove guesswork that is usually involved in traditional drafting.

Can CAD drafting remove construction errors completely?

It is true that CAD drafting significantly removes the error from the construction phase, but it does not completely remove them.

Are CAD and BIM the same?

No. CAD generally focuses on creating 2D and 3D drawings, while BIM adds data-rich models for deeper project coordination. Many teams use CAD as the foundation and add BIM as an additional layer for complex projects.

How does CAD help in the construction execution phase?

Drawings prepared with CAD tools give clear instructions to crew members and reduce on-site confusion. These tools also eliminate the need for RFIs and clashes between different trades.

Why do accurate CAD drawings matter after project completion?

Accurate as-built drawings support facility maintenance and future renovation. Construction professionals also reduce disputes by clearly documenting what was actually built.
